SPECIFICATIONS

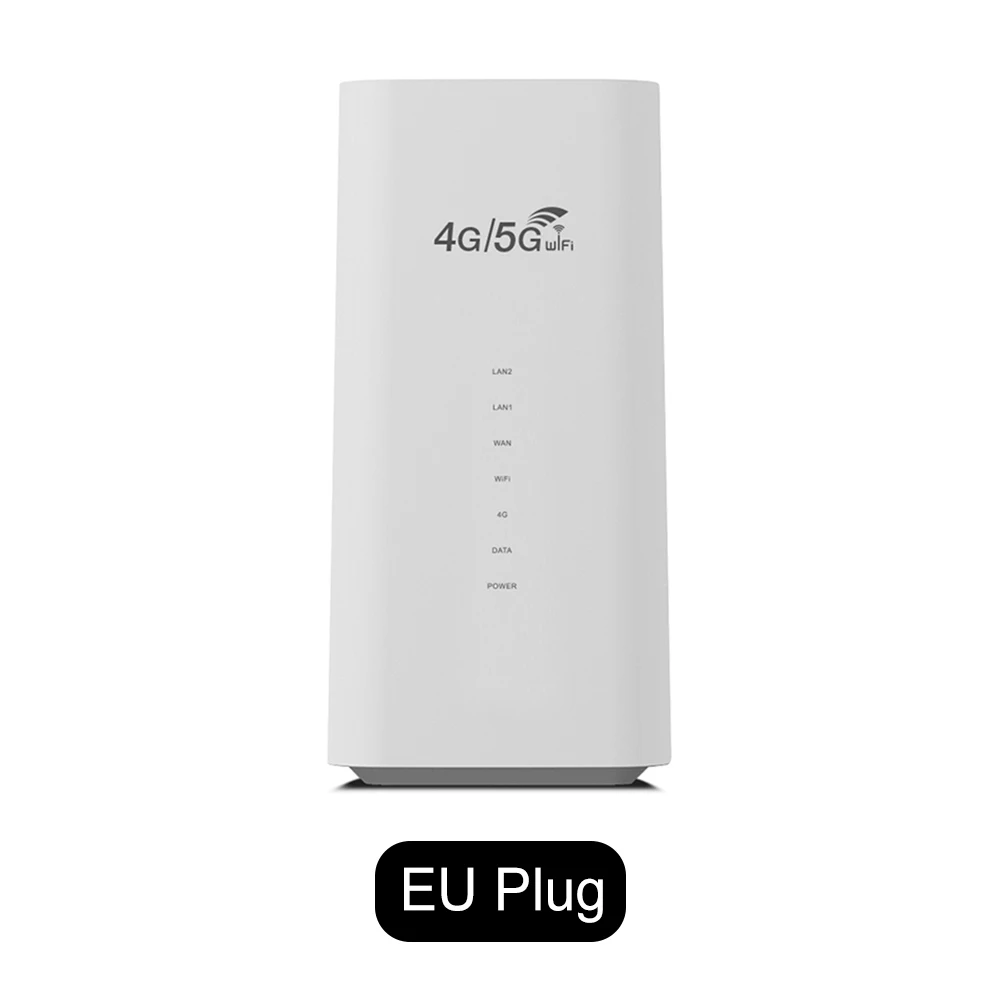

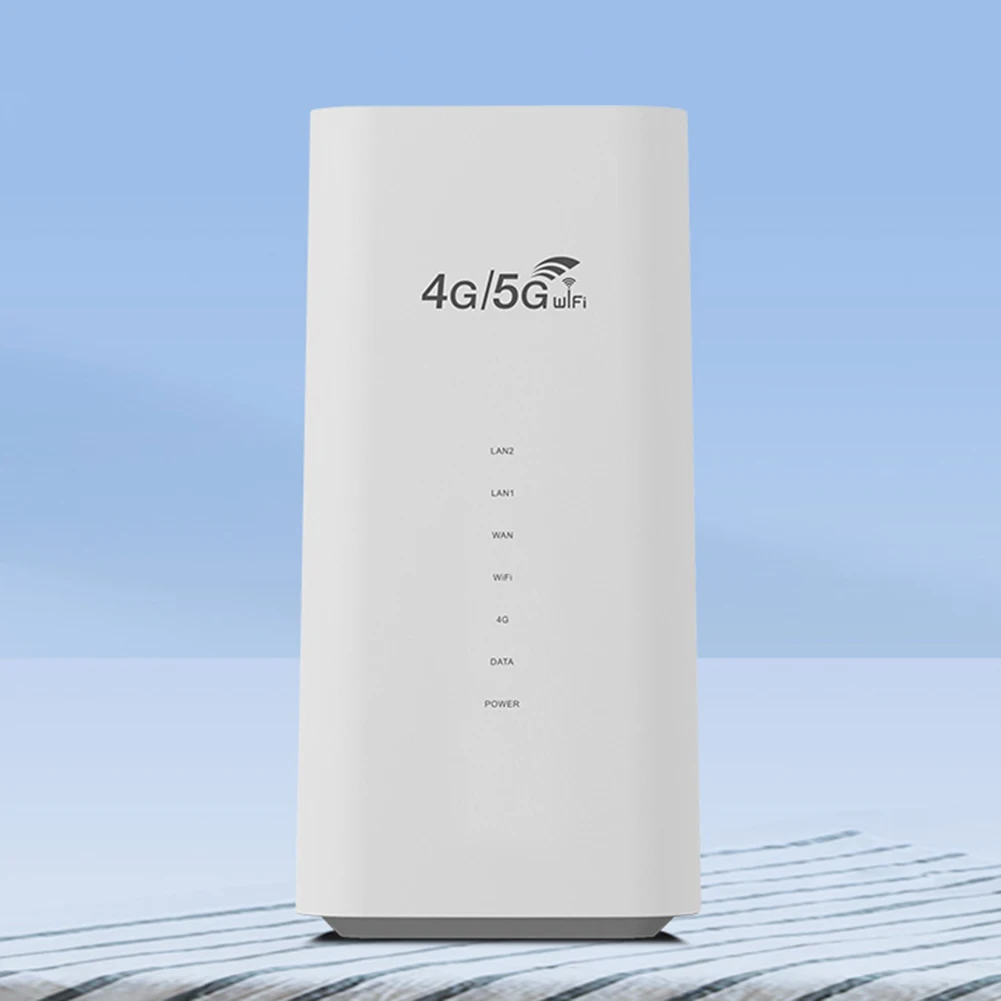

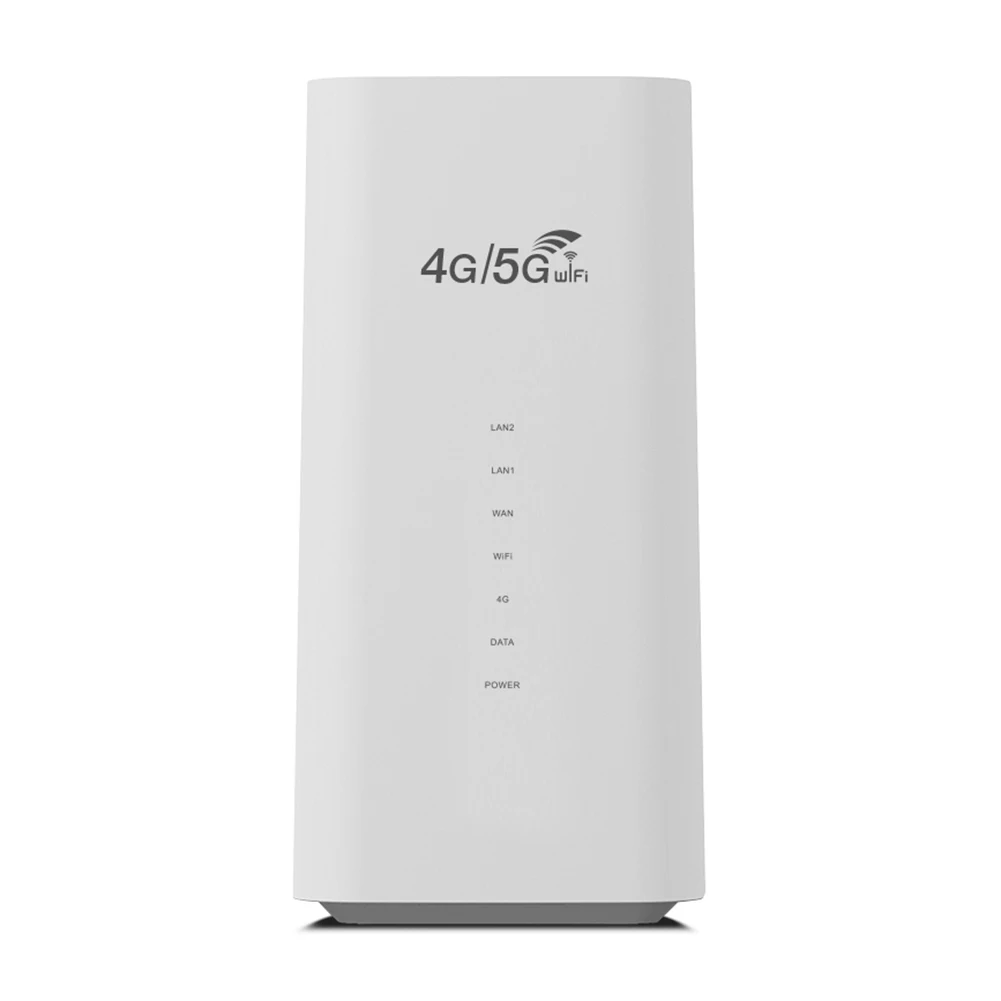

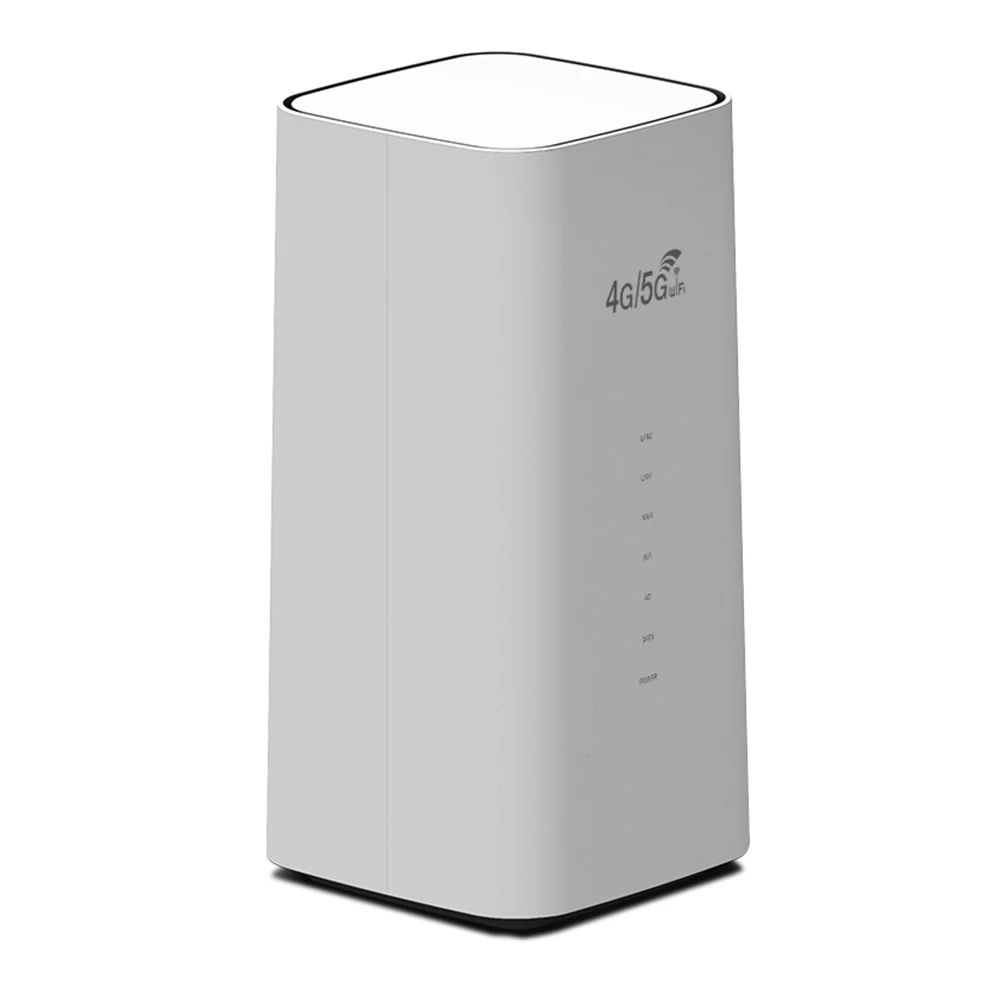

4G LTE WiFi Router 300Mbps CPE 4G WiFi Router 3 RJ45 with SIM Card Slot Wide Coverage Internal Antenna for Indoor Outdoor

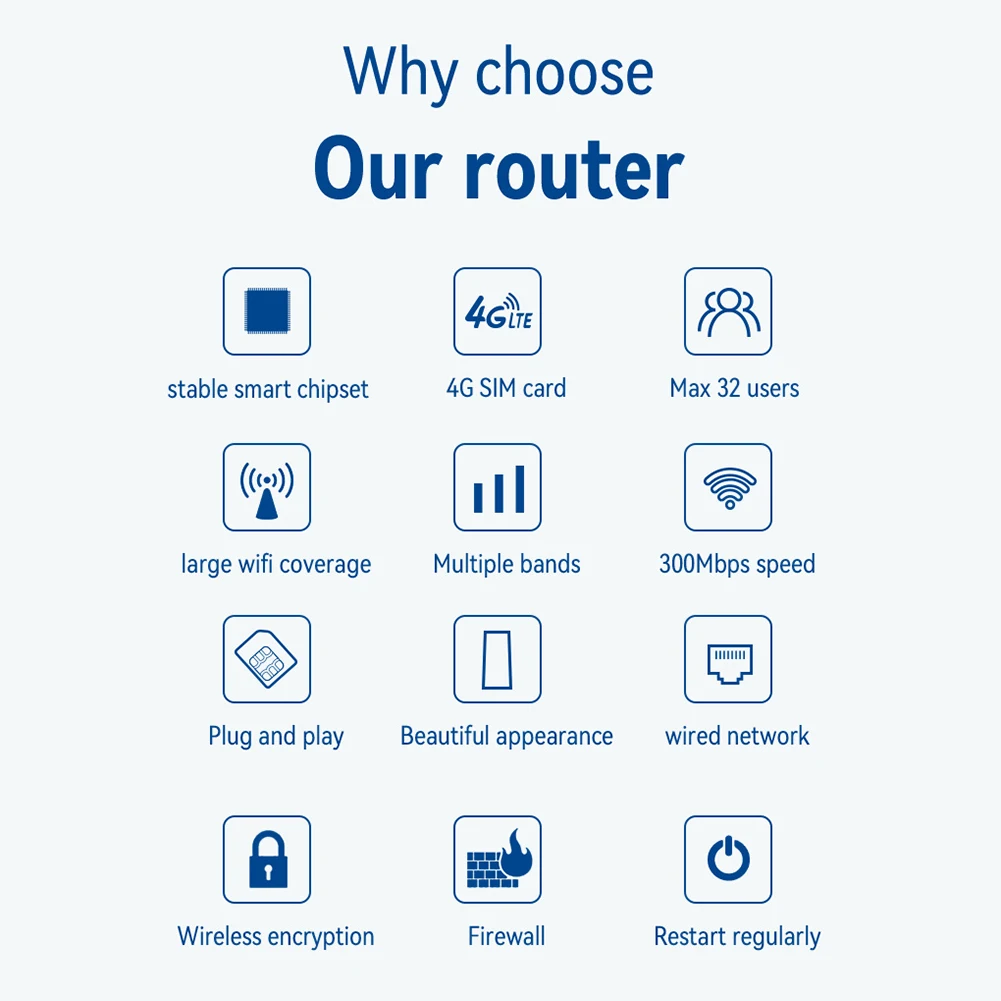

Feature:
1. High-performance 4G Router: This high-performance 4G broadband wireless router supports a maximum download speed of 150Mbps and an upload speed of 50Mbps, providing high-quality data communications and optimized WiFi data transmission. The device relies on 2*2 MIMO technology, with multiple WiFi standards and encryption modes ensuring product safety and stability.
2. Multiple Working Modes and Reliable Connections: This router has multiple working modes (4G to WiFi/4G to wired mode), rich network protocols, and reliable connections. It can be widely used in commercial and home environments and features timer restart and firewall protection functions. The device has a built-in hardware watchdog, effectively preventing system crashes during operation.
3. Multiple Ethernet Port Design: The router has a multiple Ethernet port design that provides wired networks for other devices, making it versatile and easy to use.
4. Built-in Antennas: With its built-in antennas, this router has excellent multi-antenna receiving capabilities, providing superior signal quality and coverage.

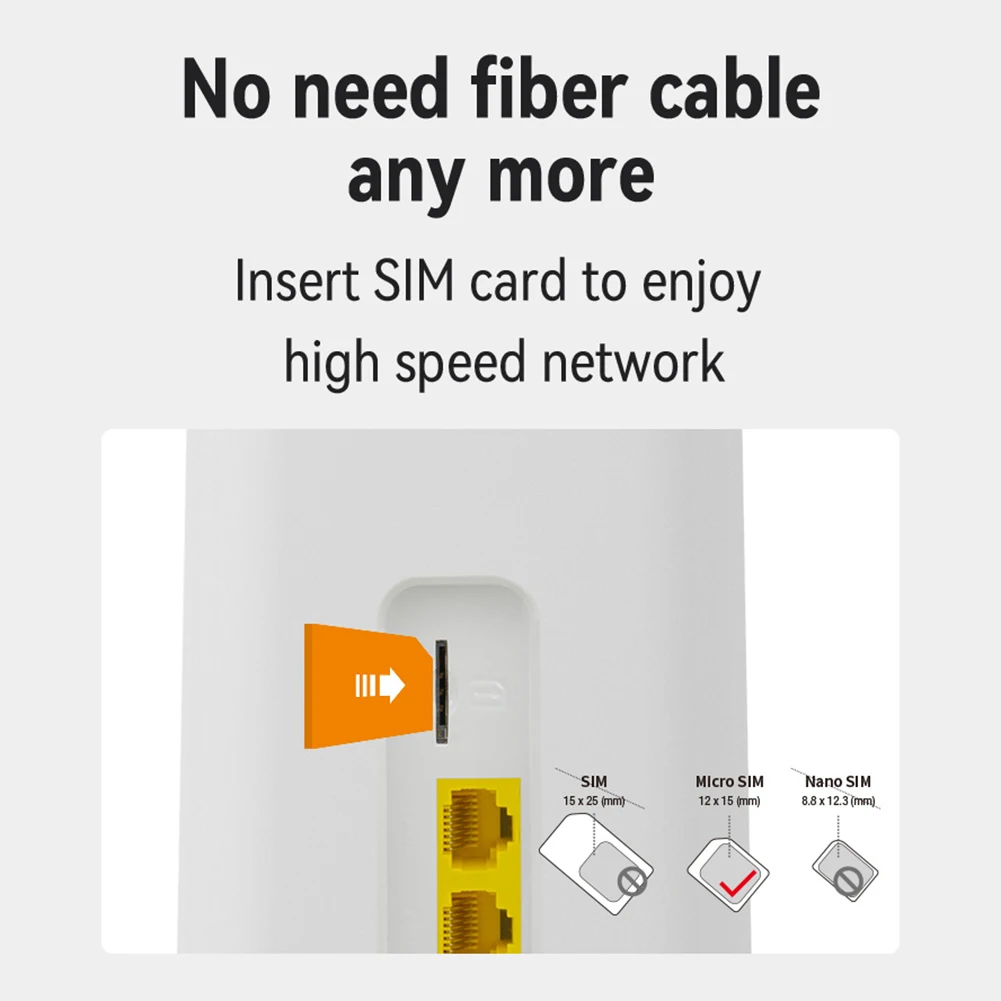

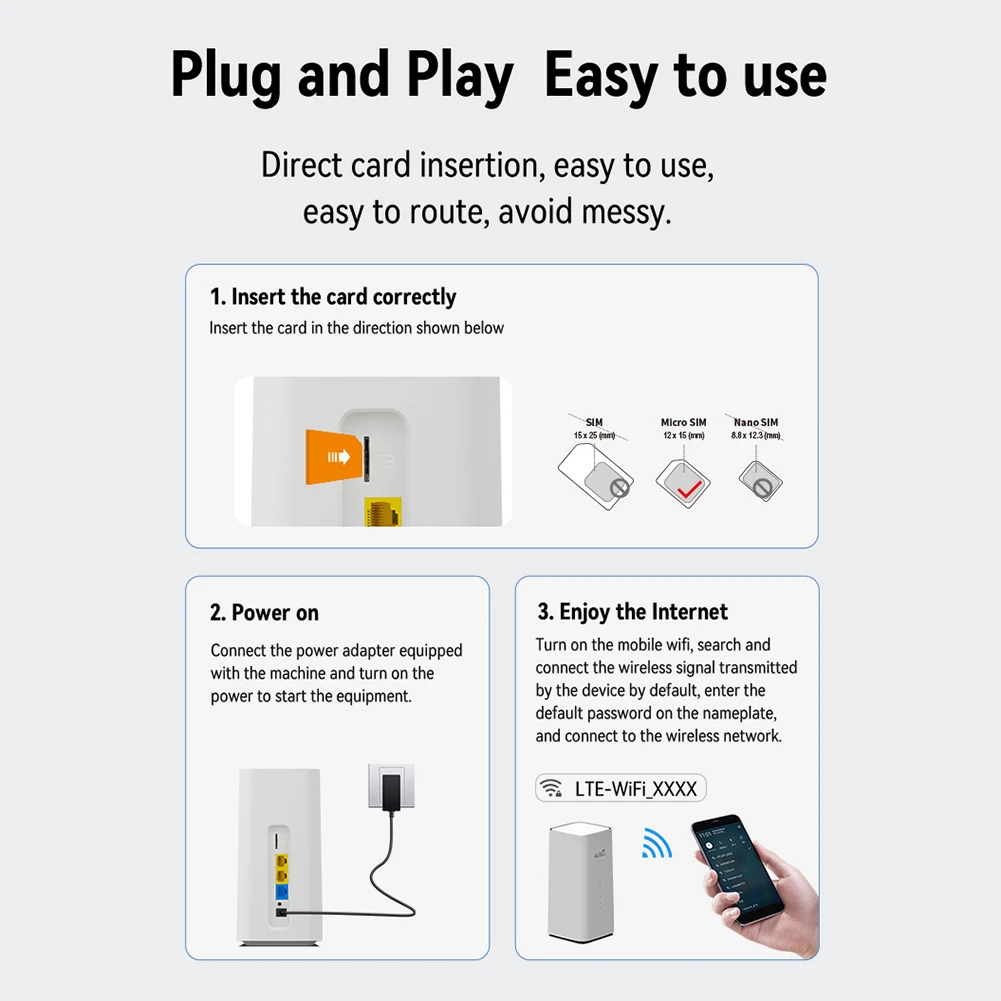

5. Plug-and-Play: With SIM card insertion, this router can emit a WiFi signal, ensuring you have access to a network wherever you go. Say goodbye to the frustration of not having an available network, as the router is ready to use with plug-and-play convenience.

Specification:
Color: White
Model: CPF101-E

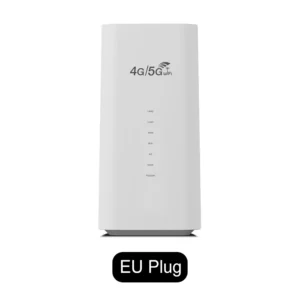

Adapter: EU, US, UK (optional)
Version: Eurasian version
Frequency band:
FDD Band: B1/3/5/7/8/20/28
TDD Band: B38/40/41
3G Band: B1/5/8

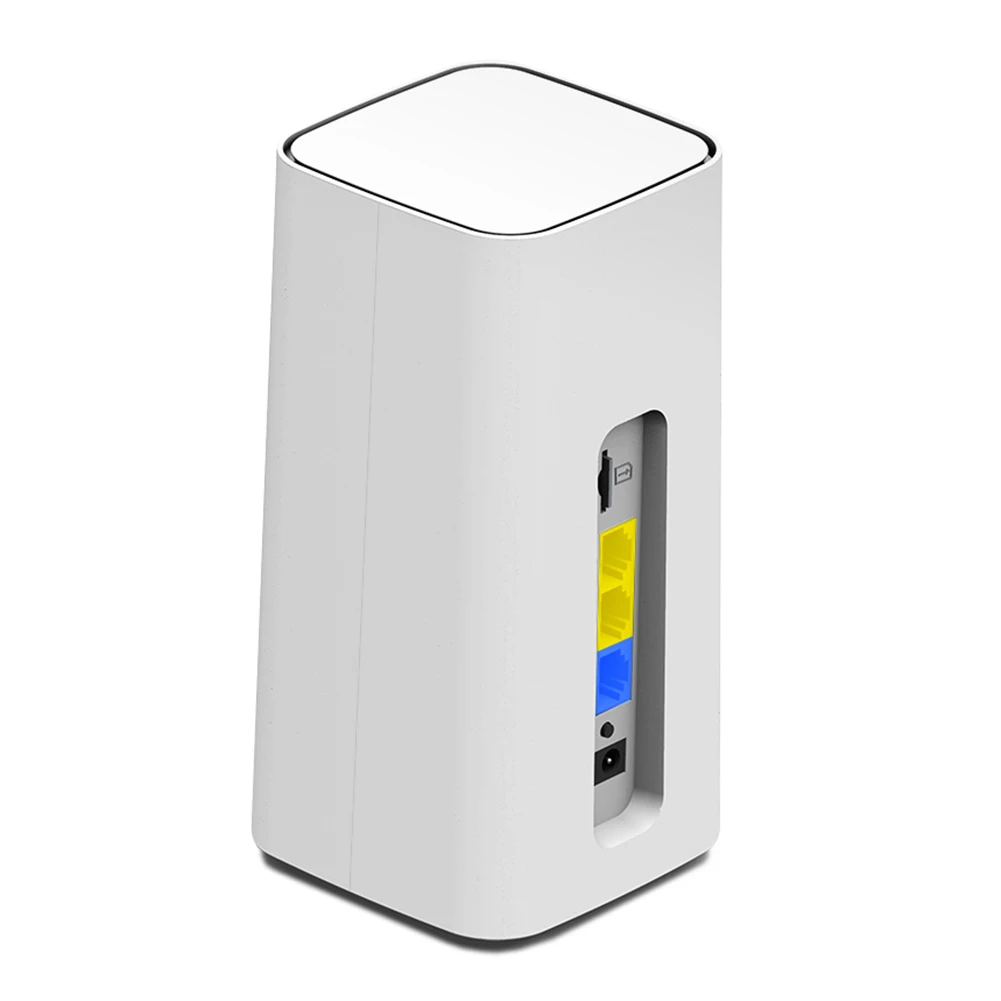

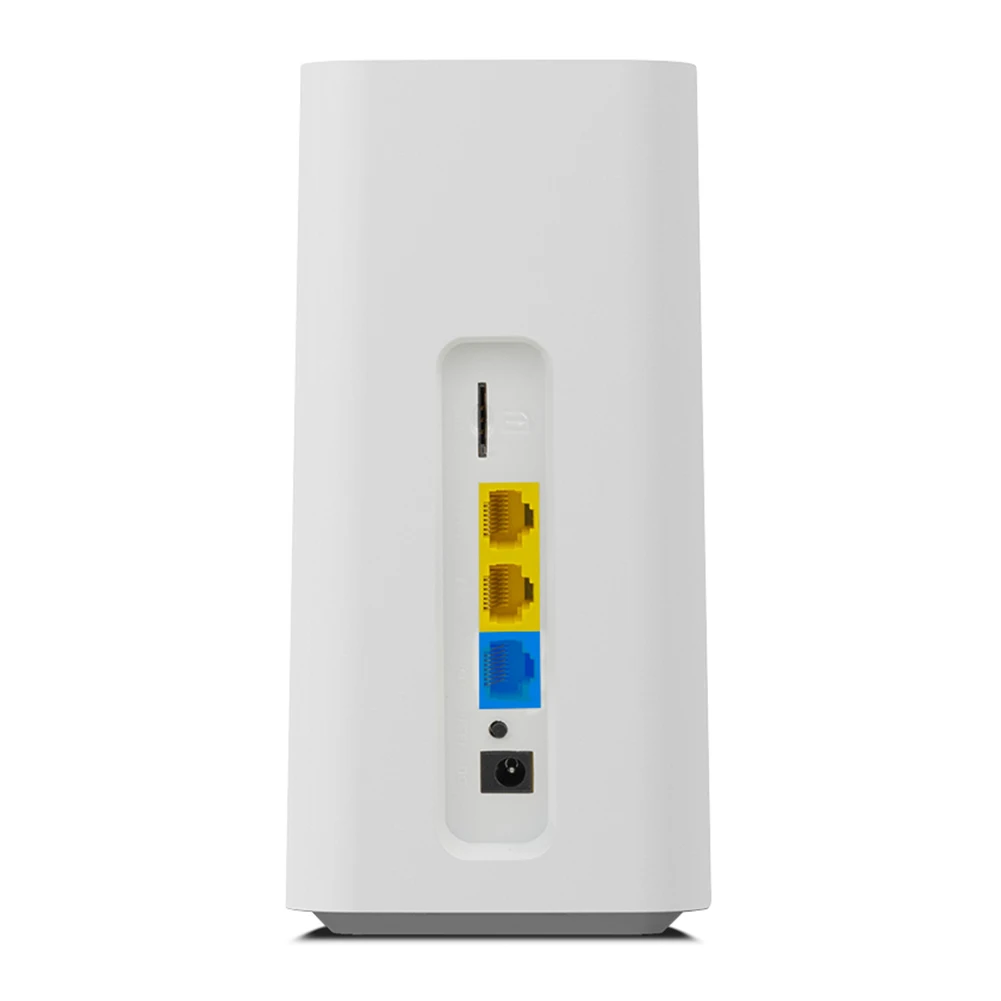

Interface: RJ45 * 3, DC * 1, SIM card slot * 1
Memory: Flash/RAM: 2Gbit+1Gbit Nand Flash
Flash: 64Mbit No Flash RAM: 512Mbit DDR2
Protocol standard: IEEE 802.11b/g/n
Wireless power: 802.11b 24dBm ± 2dBm;
802.11g 16dBm ± 2dBm;
802.11n 15dBm ± 2dBm;
Working frequency band: 2.4GHZ
Transmission rate: 300Mbps
Working voltage: AC-DC
Adapter voltage: 12V
Voltage fluctuation: 9-12V DC
Working current: 1.5A
Working temperature: 0 ℃~50 ℃
Extreme working temperature: -10 ℃~60 ℃
Storage temperature: -40 ℃~70 ℃
Working humidity: 10%~85% (non condensing)
Storage humidity: 5%~95% (non condensing)
Operating systems: Windows XP, Windows Vista, Windows 7, Windows 10, , Linux
Single size: 185 * 91 * 91mm/7.28 * 3.58 * 3.58inch
Packaging size: 194 * 166 * 98mm/7.63 * 6.53 * 3.85inch
Gross weight: 550g

Before purchasing, please read:
1. Before purchasing, you can check the frequency band in the link below to confirm if it meets local usage requirements
/>
2. The frequency band used by the local country can be found in the following link
/>
3. Frequency band query link used by local country operators
style=”color:black;font-family:inherit;font-size:12px;”>

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Router
1 x Network cable
1 x Adapter (optional)
1 x Instruction manual
